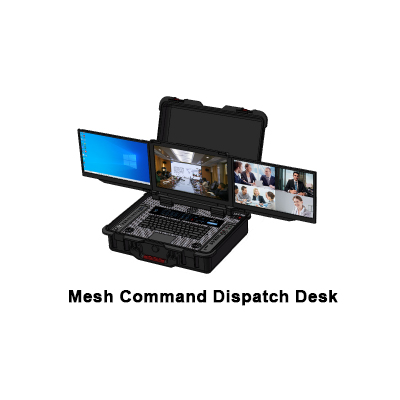

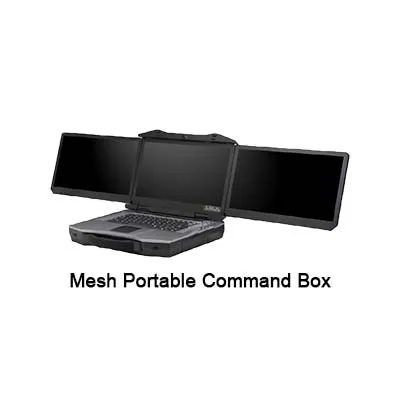

Mesh Portable Command Box/Command Dispatch Desk

The Mesh Portable Command Box integrates broadband mesh networking, video display, and command dispatch functions into a compact, all-in-one system. It enables real-time communication, video monitoring, and centralized coordination in field operations.Designed for rapid deployment, it provides stable wireless connectivity without fixed infrastructure, making it ideal for emergency response, public safety, temporary command centers, and mobile operations....

CONTACT NOW down load to pdf

Product Details

Product Tags

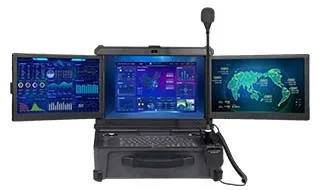

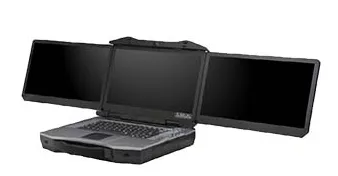

Mesh Portable Command Box/Command Dispatch Desk

Mesh portable command box/dispatching podium, which integrates single-screen/three-screen computer, mesh radio, audio and video management and dispatching, battery, and emergency portable box. It is an on-site command and dispatch platform used for various services such as voice dispatch, video dispatch, and data information at the accident scene. It has unified presentation, unified management, and provides high-definition display functions. The screen can be projected to the rear headquarters large screen system.

Specification:
1. Portable design, lightweight and portable, ready to use
2. High-strength machining design, all-aluminum-magnesium alloy/carbon fiber body, CNC one-piece forming. The surface is treated with anti-scratch coating, EMI/RF protection layer, and the C surface is water-resistant
3. Ultra-thin three-screen design, foldable, according to the software function to display the map, scheduling, video three-screen images at the same time, so that the field commander can grasp the overall situation from multiple angles
4. Support independent power supply, equipped with detachable large-capacity lithium battery, fast charging, and support mains, generator and vehicle power supply at the same time
5. Support external MIC, earphone, multiple voice input and output; support network port, WiFi, HDMI, multiple high-definition video input and output
6. Support broadband ad hoc network, public network 4G/5G, LTE private network, Wi-Fi, wired network, satellite network and other link access, and transmit on-site information to the rear command center
7. Windows10 64-bit operating system, 15.6-inch*3 display screen, Intel 8-core high-performance host, 32G memory, 1TB solid state drive, Leadtek P620-2G discrete graphics card, built-in speakers, built-in WiFi, support 802.11 b/g/n, 2 Gigabit Ethernet port, 1 HDMI output interface, 4 USB ports, 1 audio interface, 1 power interface
8. Professional-quality user graphical interface; advanced audio and video processing technology to ensure high-quality voice and video quality; user information collection and display through accurate GIS positioning; support for simultaneous multi-channel video preview and distribution; road calls; voice scheduling, video scheduling and GIS scheduling use an integrated interface, which is convenient to operate; supports video browsing, picture capture, video playback, voice intercom, alarm linkage, electronic maps, etc.
9. 392*290*84/440*321*152mm, 9/12kg (including 14.8V/16AH battery with 3 hours of battery life, 19V power adapter)
10. Working temperature: 0~45ºC, storage temperature: -20~65ºC (no condensation), working humidity:10%~90% relative humidity, no condensation
11. Vibration: 5-17Hz, 0.1 inch double peak displacement, 17-640Hz, 1.56 peak per peak; Shock: 10G peak per peak acceleration, sustainable 15MS in X, Y, Z axis directions; EMC: 3C/CE/FCC Class A
12. The whole machine adopts a shock-absorbing and anti-vibration design all around, and adopts the original hard disk shock-absorbing technology, which makes the data operation more secure.
