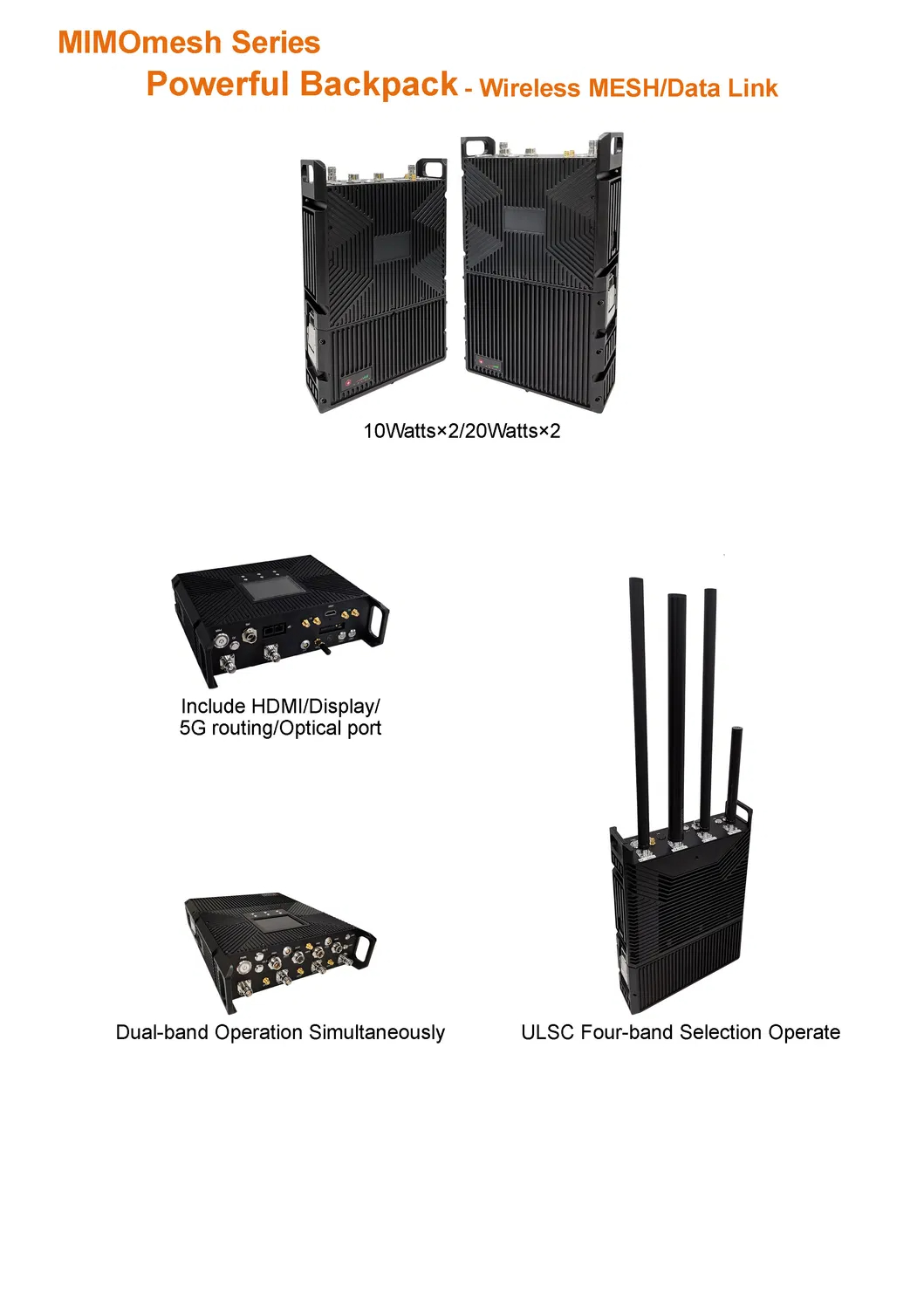

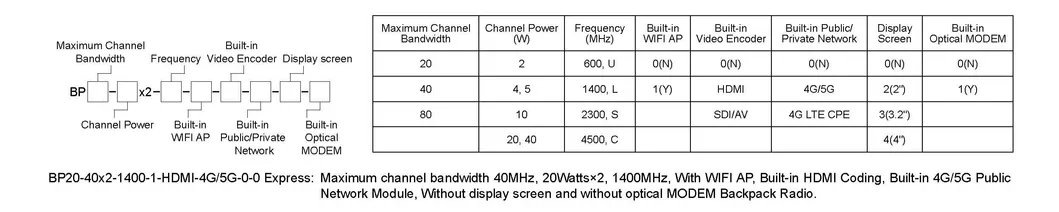

MIMO Mesh Wireless Data Radio – High-Power Backpack Series
Powerful Backpack Series-Wireless MESH/Data Link Technical Specifications
| General | |
| SDR Platform, Waveform | AD936X+FPGA (7Z020,7Z030,7Z035,7Z100), Mobile network MANET+MIMO |
| MIMO Technology | Space-time coding, Receive Diversity, TX /RX beamforming, Spatial multiplexing |
| Receive Sensitivity | -103dBm@5MHz BW |
| Channel Bandwidth | 1.25/2.5/5/10/20MHz (7Z020, 7Z030)/40MHz (7Z035)/80MHz (7Z100, 40MHz+40MHz dual antenna frequency transceiver of carrier aggregation), configurable |
| Data Rate | 1-70Mbps (20MHz BW, 7Z020)/1-130Mbps (20MHz BW, beamforming by 7Z030)/1-252Mbps (40MHz BW)/1-350Mbps (80MHz BW) Adaptive, QoS |
| Modulation Mode | TD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive (Fixed setting optional) |

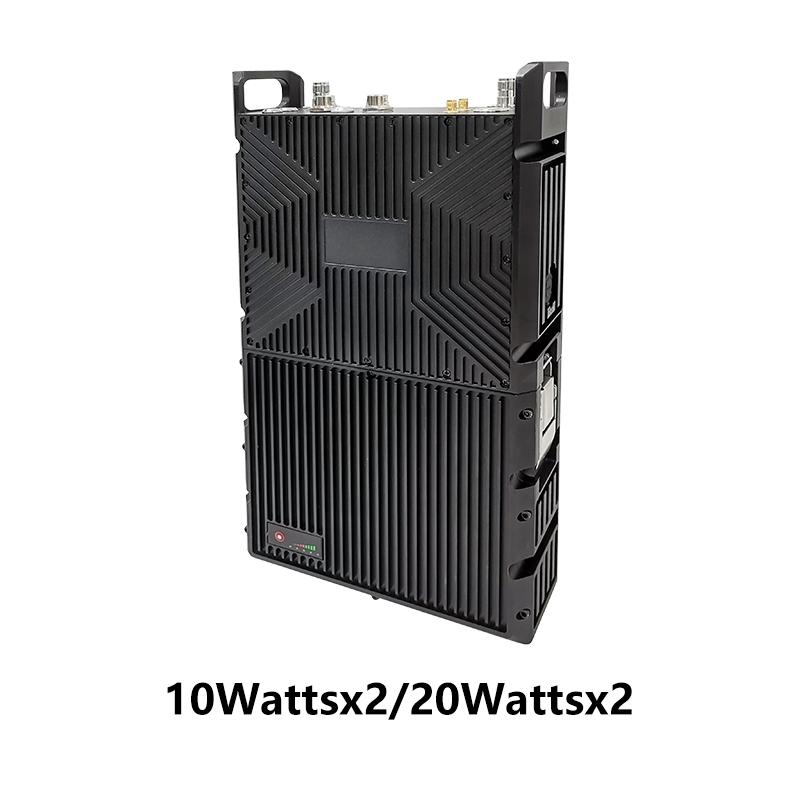

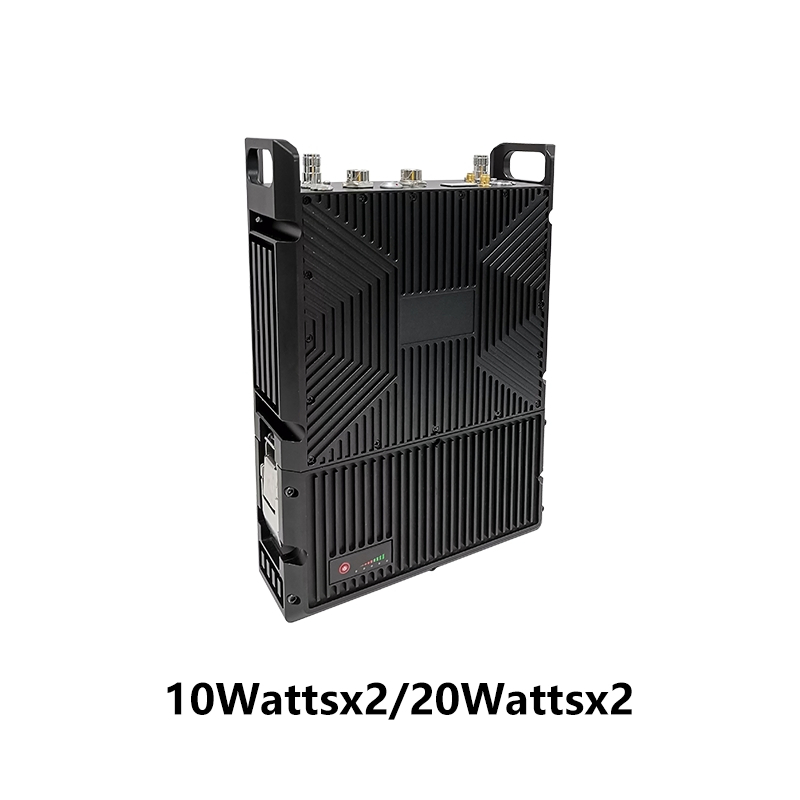

| RF Output Power (Support TPC, transmission power control, 1dBm adjustable) | 10Watts×2 20Watts×2 |
| Mode | Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing,Multi-hop relay, Star/Line/Network/Hybrid |
| Single Hop Delay | Average 6mS (Unidirectional, 20MHz BW) |
| Encryption | DES, AES128/256 (SM4/SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine) |
| Anti-Jamming Mode | Manual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference |
| Local/Remote Management | Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, BD/GPS(GNSS) positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade (remote silence and wake-up optional) |
| Others | The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second; There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops); The total transmission rate loss for more than three hops is less than 70%; Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second) |
| Bands(70M-6GHz/Uper C-X-Ku customizable. Same frequency or different frequency of TDD,2T2R at single band or 1T2R at dual-band) | |
| BAND | Frequency range |
| VHF/UHF (MHz) | 360-450/450-550/570-700/800-950, 225-400/225-678/320-470* |
| L Band (GHz) | 1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.5* |
| S Band (GHz) | 2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6* |
| C Band (GHz) | 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2* |
| (Note: RF power, Dimensions, Weight is different) | |
| MIIT (MHz) | 336-344/512-592/566-626/606-678/1420-1520/1430-1444 |
| Environmental | |
| Operation Temperature | -40ºC ~+80ºC |
| Protection Level | IP66 (IP67/IP68 Customized) |
| Mechanical | |

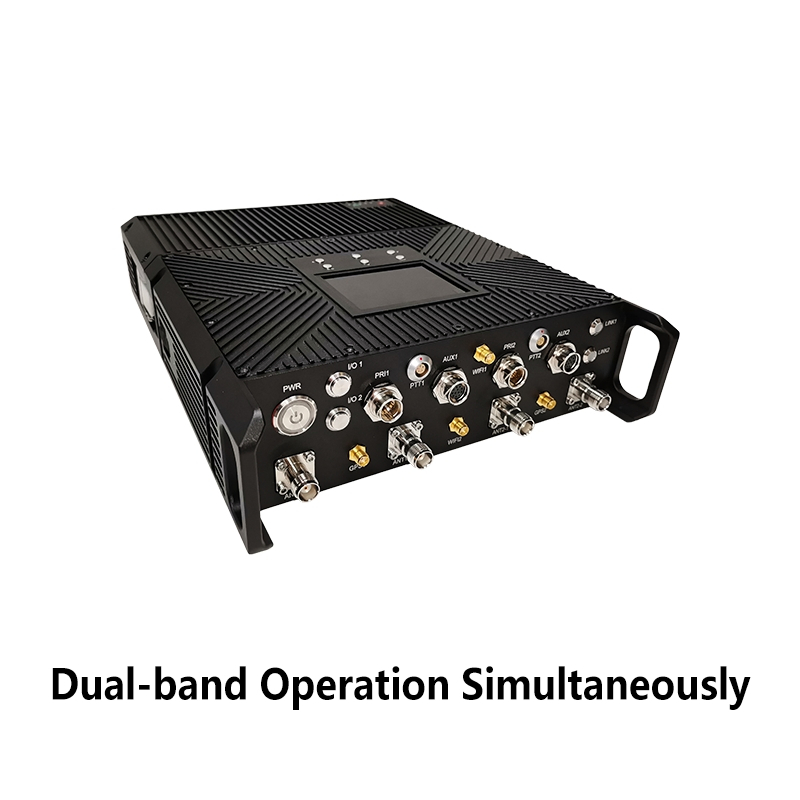

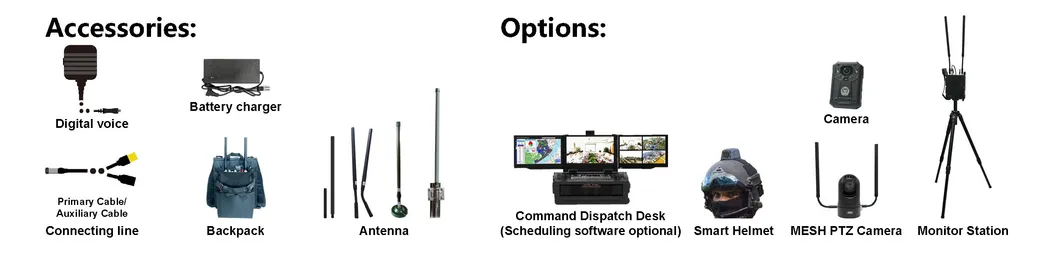

| Size/Weight | 27.5x18.9x6.2cm/4.15kg, with 22.2V/213Wh battery 33.6x18.9x6.2cm/5.26kg, with 22.2V/427Wh battery 29.5x23.0x6.5cm/5.26kg, with 22.2V/213Wh battery (Dual-band Operation) 28.8x21.0x6.2cm/4.61kg, with 22.2V/213Wh battery (Dual-band Selection Operate) 22.9x18.9x6.5cm/2.95kg, with 22.2V/427Wh battery (Four-band Selection Operate) |
| Installation/Color | 4 Mounting Holes/Black, Iron Gray (Army Green Optional) |
| Power | |
| Supply Voltage | 18-24VDC, 10Watts×2 18-36VDC, 20Watts×2 |
| Power consumption | Operation 3-6A/Standby 0.7-0.9A@24V, 10Watts×2 Operation 6-7A/Standby 0.7-0.9A@24V, 20Watts×2 |
| Power Selection | 6-8 hours for 213Wh polymer lithium battery (Default); 10-12 hours for 427Wh polymer lithium battery |
| Interface | |
| Basic interface | 2xTNC RF, 1-2xRJ45 Ethernet 100/1000BaseT, RS232, Wi-Fi AP, DC input. BD/GPS (GNSS), TTL (UART)/SBUS/Bluetooth 1.2-230.4Kbps available. Supports transparent transmission over Ethernet and serial ports, and all communication protocols, including MAVLink. Selectable service priority |
| Push to talk/Auxiliary interface | MIC, SPK, PTT, GND/1xRS232, TTL, SBUS |
| Network Extension Optional | Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |

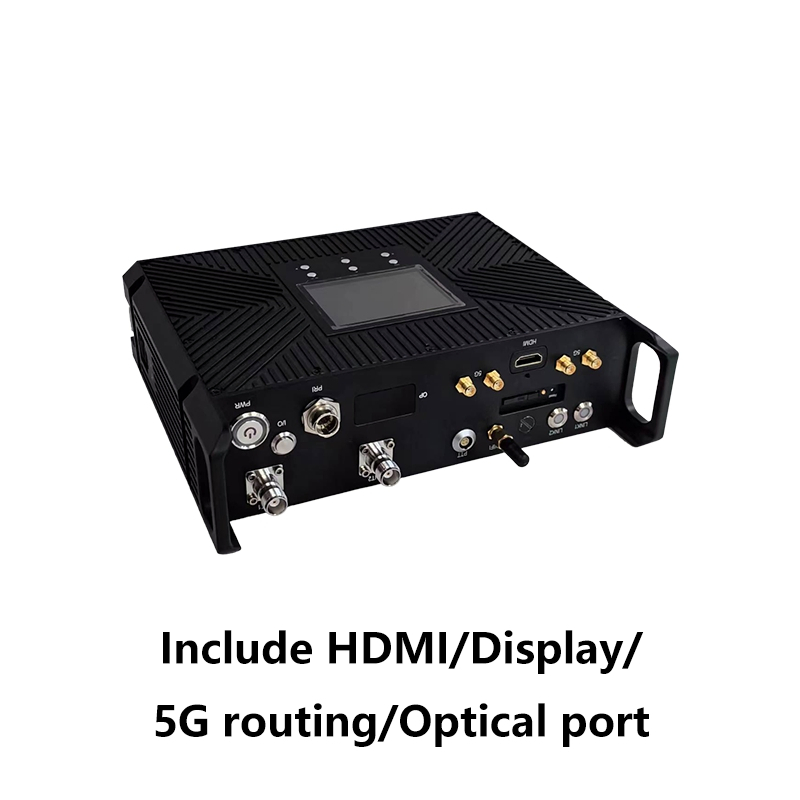

| Video Extension Optional | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| LINK Indicator | Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected Blinking green - Push-To-Talk has been pushed |
| RSSI Indicator | Steady green - The link quality is excellent Steady blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor Off - The link is interrupted |
| Management Interface/ Control Interface | Web-based network management/GUI, API for secondary development interface/SNMP |
