DdlMesh Wireless Digital Data Link Series – Ultra-Low Latency, Long-Range, Multi-Channel Bidirectional Radio
Ultra low delay, Long range,Bidirectional multi channel Radio
The new DDLmesh series wireless digital data link is a low-cost long-distance video&data transmission product with small size, light weight, 2×2 MIMO, complete functions and abundant frequency bands. DDLmesh series based on SDR software defined radio platform with 2×2 MIMO, it adopts Beamforming, Maximal Ratio Combining(MRC), Maximal Likelihood(ML) algorithm, low density parity check(LDPC) coding, intelligent frequency selection and autonomous frequency hopping technology to achieve strong radio frequency performance and strong anti-jamming.
DDLmesh series data link radio provides ultra-long distance, low latency, bidirectional multi-channel network video&data&voice integrated wireless transmission. The world's leading code-modulated physical layer waveform technology and flexible anti-jamming and secure encryption design for the unmanned field are applied to reliable remote data links for UAVs, helicopters, robots, unmanned ships, unmanned vehicles and special vehicles.
The application system is mainly composed of the airborne radio with the airborne camera, and the ground radio with the ground computer, as well as the necessary accessories(including power supply, antenna feed system, connection lines and connectors, etc.).
The system can simultaneously transmit three IP/HDMI/SDI/CVBS HD video and multiple two-way transparent data(such as flight control/pod, BD/GPS, voice, etc.). AES encryption ensures transmission security.
Radio the transmission power of the station can reach up to 40W, providing a stable and reliable communication link.
Features:
1. 400M/600M/800M/900M/1.4G/2.3G/2.4G/5.8GHz, transmitting power can be change, support NLOS high speed mobile transmission.
2. 70Mbps data stream, adaptive dynamic bit allocation technique. Support one way 4K, multi way 1080P or 720P HD video.
3. 3 serial port and 2 video interface running at the same time, flight controller, voice, GPS and other data can transmit with video.
4. Support PtoP, PtoMP, MPtoMP technique,centerless of no-master/slave.Support VLAN.
5. Local diagnostic interface, telnet, network management. Local and remote wireless firmware update through FTP.
6. Low power consumption. Tiny volume, lightweight structure, body building for UAV.
Specifications
| General | ||
| SDR Platform, Waveform | 9363 or 9361+7Z020, Mobile Network MANET | |
| MIMO Technology | Space-time coding,Receive Diversity,TX /RX beamforming | |
| Receive Sensitivity | -103dBm@5MHz BW | |
| Channel Bandwidth | 1.25/2.5/5/10/20MHz Broadband, 250k/500k/1MHz narrowband setting | |
| Data Rate | 1-70Mbps(20MHz BW) Broadband, 50-1000kbp narrowband Adaptive, QoS | |
| Modulation Mode | TD-COFDM, BPSK/QPSK/16QAM/64QAM Adaptive(Fixed setting optional) | |

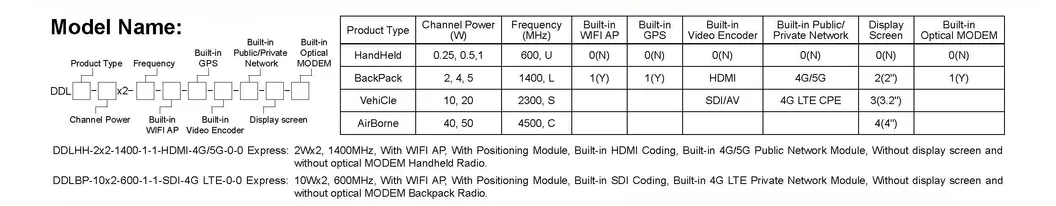

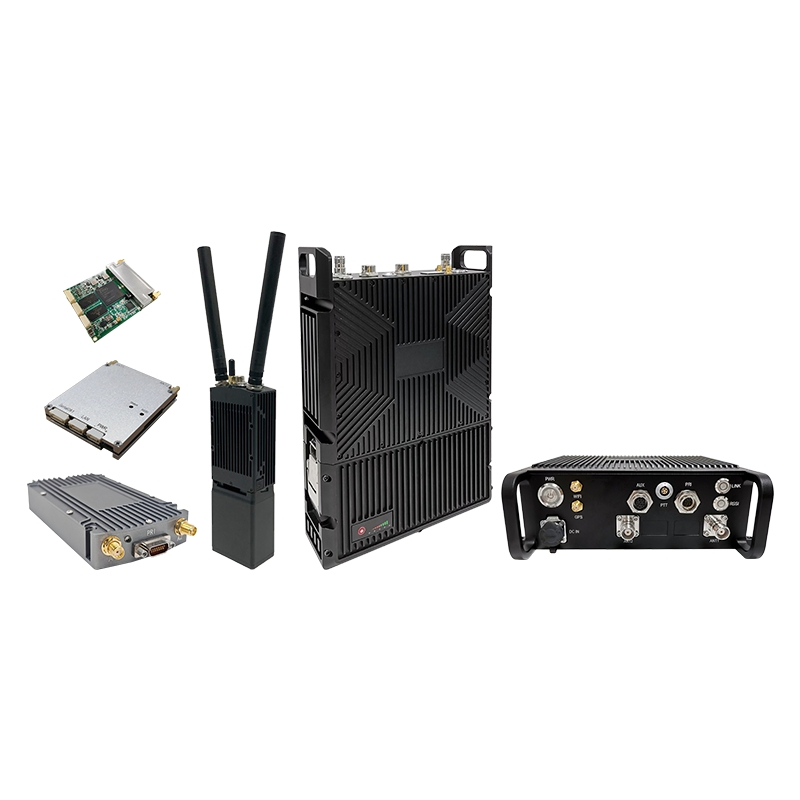

| RF Output Power (Support TPC, transmission power control) | 0.25Watts x2 (nano Module/Airborne Radio) 0.5Watts x2 (mini Module/Airborne Radio) 1Watts x2/2Watts x2 (Module/Airborne/Handheld Radio) 4(5)Watts x2 (Module/Airborne/Handheld/Vehicle Radio) 10Watts x2/20Watts x2 (Airborne/Backpack/Vehicle Radio) 40(50)Watts x2 (Airborne/Backpack/Vehicle Radio) 150Watts×2 (Customization) | |
| Mode of Communication | Decentralized point-to-point, point-to-many and many-to-many communications with cross-connection, supporting small-scale (within 8 nodes) MESH networking with dynamic routing and multi-hop relay | |
| Single Hop Delay | Average 10mS(20MHz BW) | |
| Encryption | DES, AES128/256, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine | |
| Anti-Jamming Mode | Manual spectrum scanning channel selection, Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping/Roaming mode optional | |
| Local/Remote Management | Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, BD/GPS(GNSS) positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade (remote silence and wake-up optional) | |
| Others | The boot time is less than 28 seconds, and the network access/update/switching time is less than 1 second; The network size is less than 8 nodes, and the total bandwidth loss over three hops is less than 70%; Automatic carrier tracking, adapting to Doppler frequency shift of ±6kHz frequency deviation, supporting mobile communications at speeds above 7200 kilometers per hour (Mach 6, 2000 meters per second) | |
| Bands(300M-6GHz customizable. Same frequency or different frequency of 2T2R at single band, or 1T2R at dual-band selectable/smart change) | ||
| BAND | Frequency range | |
| VHF/UHF | 360-450/450-550/570-700/800-950, 225-400/225-678/320-470*MHz | |
| L Band | 1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.5*GHz | |
| S Band | 2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8, 1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6*GHz | |
| C Band | 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2*GHz | |
| (Note: RF power, Dimensions, Weight is different) | ||
| MIIT | 336-344/512-592/566-626/606-678/1420-1520/1430-1444MHz | |
| Environmental | ||
| Operation Temperature | -40ºC ~+80ºC | |
| Protection Level | IP66 (IP67/IP68 Customized) | |
| Mechanical | ||

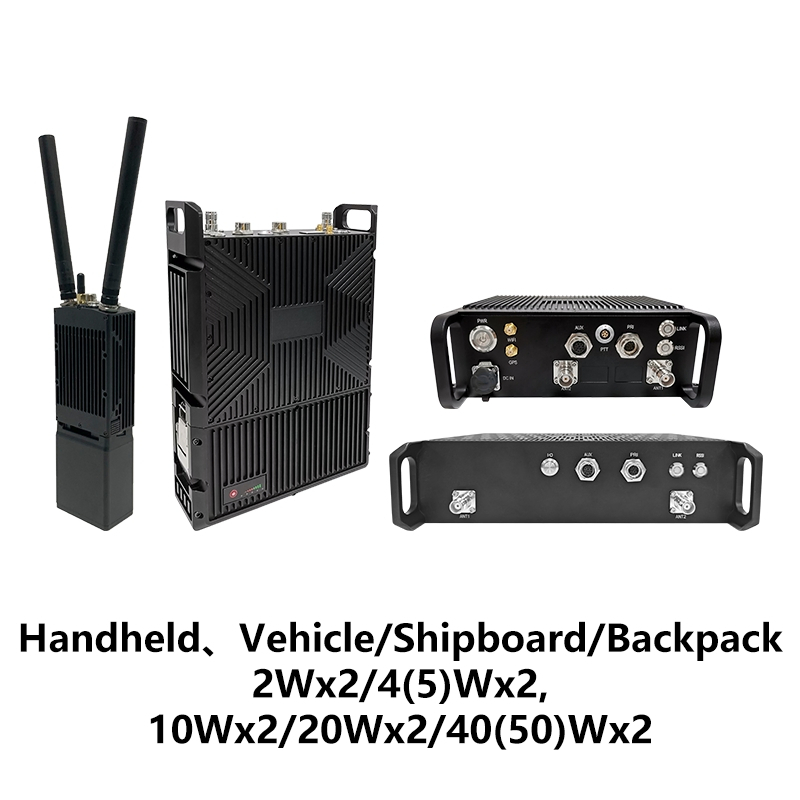

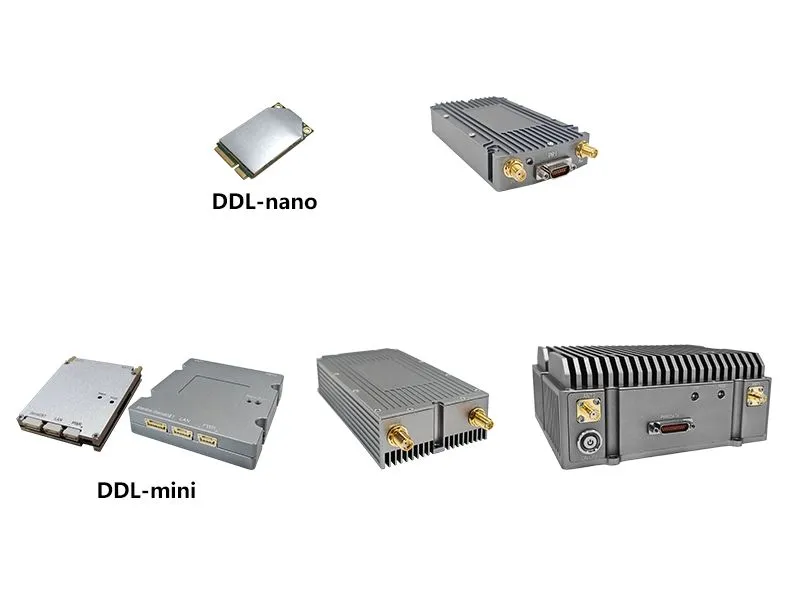

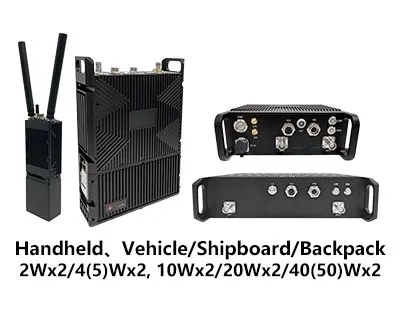

| Size/Weight | 5.1x3.0x0.7cm/14g, 0.25Watts×2 Airborne Radio, DDL-nano 6.2x4.8x1.1cm/46g, 0.5\Watts×2 Airborne Radio, DDL-mini 6.0x5.8x1.3cm/60g, 0.5\Watts×2 Airborne Radio, DDL-mini 9.6x5.8x1.9cm/120g, 1Watts×2 Airborne Radio, DDL-mini 11.7x6.2x2.0cm/160g, 1Watts×2/2Watts×2 Airborne Radio-Iron Gray 13.8x6.2x2.7cm/225g, 4Watts×2/5Watts×2 Airborne Radio-Iron Gray 13.4x12.8x3.8cm/598g, 10Watts×2/20Watts×2 Airborne Radio-Iron Gray 14.2x13.7x5.2cm/1.06kg, 10Watts×2/20Watts×2 Airborne Radio-Black 14.2x13.7x6.0cm/1.11kg, 30Watts×2/40Watts×2 Airborne Radio-Dark Gray 19.0x6.8x3.8cm/769g, with 11.1V/77.7Wh battery Handheld 27.5x18.9x6.2cm/4.15kg, with 22.2V/213Wh battery Backpack 19.1x18.6x6.3cm/2.16kg, 10Watts×2/20Watts×2 Vehicle&Shipboard 25.8x21.3x6.5cm/3.95kg, 40(50)Watts×2 Vehicle&Shipboard | |
| Installation/Color | 4 Mounting Holes/Black, Iron Gray (Army Green Optional) | |
| Power | ||
| Supply Voltage | 3.5-5V DC, 0.25Watts×2 Module/Airborne, DDL-nano 9-39V DC, 0.5Watts×2/1Watts×2 Module/Airborne, DDL-mini 12-36V DC, 2Watts×2/4Watts×2/5Watts×2 Module/Airborne/Handheld/Vehicle&Shipboard 18-32V DC, 10Watts×2/20Watts×2 Airborne/Backpack/Vehicle&Shipboard 28-32V DC, 30Watts×2/40(50)Watts×2 Airborne/Backpack/Vehicle&Shipboard | |
| Power consumption | Operation 1-2A/Standby 0.5-1A@3.5-5V, 0.25Watts×2 Module/Airborne, DDL-nano Operation 0.3-0.5A/Standby 0.2-0.3A@12V, 0.5W×2/1W×2 Module/Airborne, DDL-mini Operation 0.5-1A/Standby 0.4-0.6A@12V, 1Watts×2 Module/Airborne Operation 1-2A/Standby 0.5-0.7A@12V, 2/4(5)Watts×2 Module/Airborne/Handheld/Vehicle&Shipboard Operation 3-6A/Standby 0.7-0.9A@18V, 10Watts×2 Airborne/Backpack/Vehicle&Shipboard Operation 6-7A/Standby 0.7-0.9A@20V, 20Watts×2 Airborne/Backpack/Vehicle&Shipboard Operation 22A/Standby 0.4-1.6A@28-32V,30Watts×2/40(50)Watts×2 Airborne/Backpack/Vehicle&Shipboard | |
| Power Selection | Power Supply by Twist-Lock Battery or Main Cable | |
| Batteries | 8-10/6-8 hours for 114/77.7Wh(Handheld Radio) 10-12/6-8 hours for 427/213Wh(Backpack Radio) polymer lithium battery | |
| Interface | ||
| Basic interface | 2xIPEX/2xMMCX/2xSMP/2xSMA/2xTNC/2xN RF, 11-2xRJ45 Ethernet 100/1000BaseT, RS232, DC input. TTL (UART), SBUS, and Bluetooth 1.2-230.4Kbps, Wi-Fi access point, and BD/GPS (GNSS) are available. Supports transparent transmission over Ethernet and serial ports, and all communication protocols, including MAVLink. Selectable service priority | |
| Push to talk/ Auxiliary interface | MIC, SPK, PTT, GND/1xRS232, TTL, SBUS | |
| Network Extension Optional | Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite | |
| Video Extension Optional | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 | |
| Link Status Indicator | Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected Blinking green - Push-To-Talk has been pushed | |
| RSSI Link Indicator | Steady green - The link quality is excellent Steady blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor Off - The link is interrupted | |
| Management Interface/ Control Interface | Web-based network management/GUI, API for secondary development interface/SNMP | |
| OEM | ||

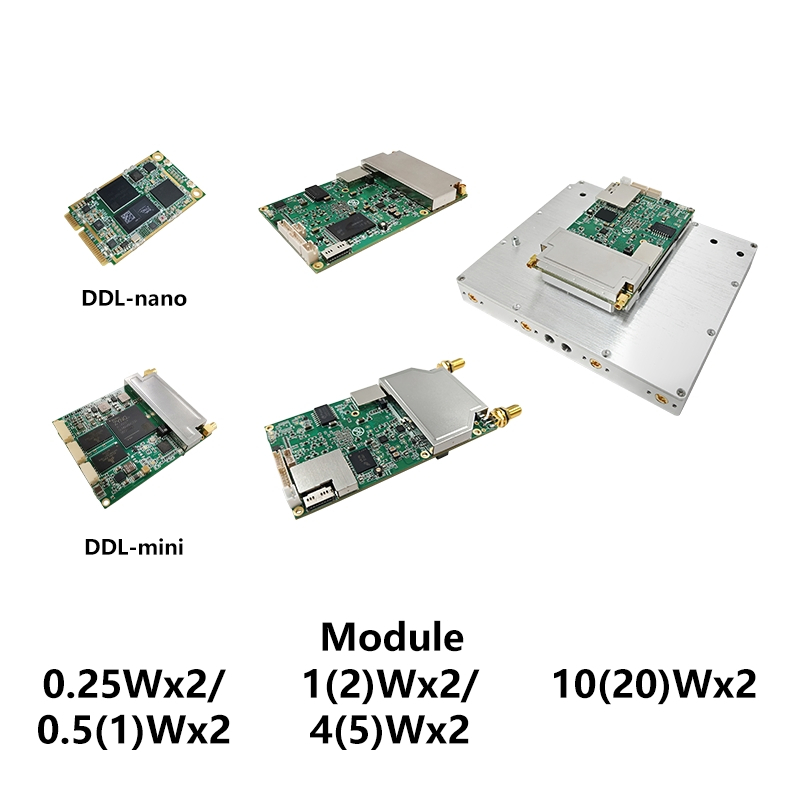

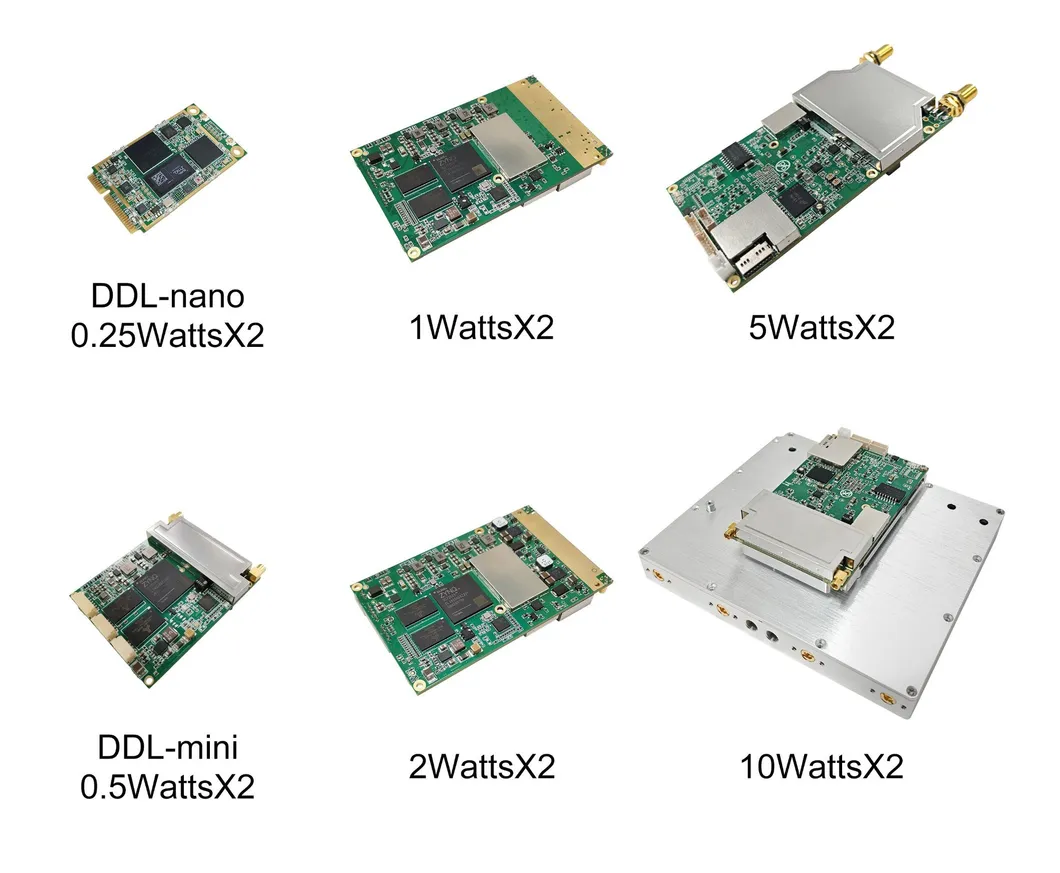

| Size/Weight | 5.1x3.0x0.6cm/11g, 0.25Watts x2 Module, DDL-nano 5.8x4.8x1.0cm/27g, 0.5Watts x2 Module, DDL-mini 8.7x5.4x1.0cm/40g, 1Watts x2 Module 8.7x5.4x1.0cm/43g, 2Watts x2/4Watts x2 Module 11.5x5.4x1.3cm/56g, 5Watts x2 Module 12.7x11.0x3.4cm/524g, 10(20)Watts x2 Module | |
| RF | SMA, MMCX(DDL-mini), IPEX(DDL-nano) | |

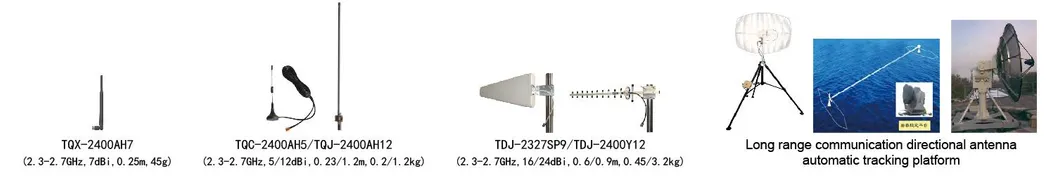

Stick antenna, Vehicle mounted antenna, All-Round high gain antenna, Directional high gain antenna, Long distance communication directional antenna automatic tracking platform
